digest-interp-form

Macro

(digest-interp-form form &key (round t))

Return an interpolation breakpoint list for the interp function with alternating min and max values of the form (x1 min1 x2 max1 x3 min2 x4 max2…)

x values in the result are going from 0..1, the distance between succesive x vals calculated by the :dtime function form.

A form (:dtime 0.2) will result in x values (0 0.2 0.4 0.6 0.8 1).

A form (:dtime (n-lin x 0.2 0.5)) will result in x values (0 0.2 0.46 0.8 1).

Note that the final dtime value is truncated in the second example.

form should contain a :dtime, :min and :max property. The forms of :dtime, :min and :max can use x, referring to its value and the forms of :min and :max can additionally use ip-num and ip-idx, referring to the current idx and the total num of values in the interpolated list. :bindings is an optional binding form for variables usable within the context of the :min and :max forms.

Arguments

`proplist`	Property List containing `:dtime`, `:bindings`, `:min` and `:max` properties.
`:round`	whether the results should get rounded to two decimal places (default t).

Examples

(digest-interp-form
 (:dtime (n-exp x 0.3 0.05)
  :min (n-lin x 0.5 0)
  :max (n-lin x 0.5 1)))

;; => (0 0.5 0.3 0.65 0.48 0.26 0.61 0.8 0.71 0.15 0.79 0.9 0.86 0.07
;;     0.92 0.96 0.98 0.01 1 1.0)

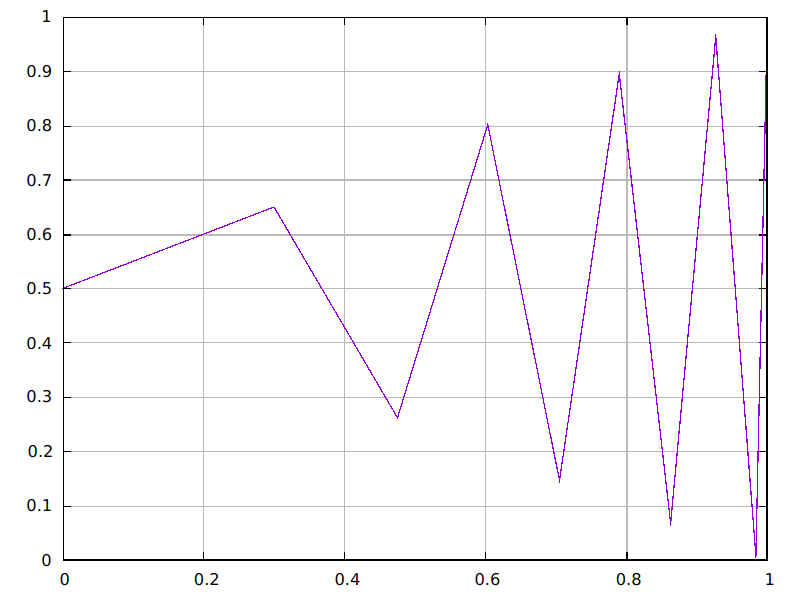

(plot-2d
 (digest-interp-form
  (:dtime (n-exp x 0.3 0.05)
   :min (n-lin x 0.5 0)
   :max (n-lin x 0.5 1))))

(digest-interp-form
  (:bindings ((min 0) (max 1))
   :dtime (n-exp x 0.3 0.05)
   :min (float (* ip-idx (/ 0.5 (1- ip-num))) 1.0)
   :max (- 1.0 (* ip-idx (/ 0.5 (1- ip-num))))))

;; => (0 0.0 0.3 0.94 0.48 0.11 0.61 0.83 0.71 0.22 0.79 0.72 0.86
;;     0.33 0.92 0.61 0.98 0.44 1 0.5)

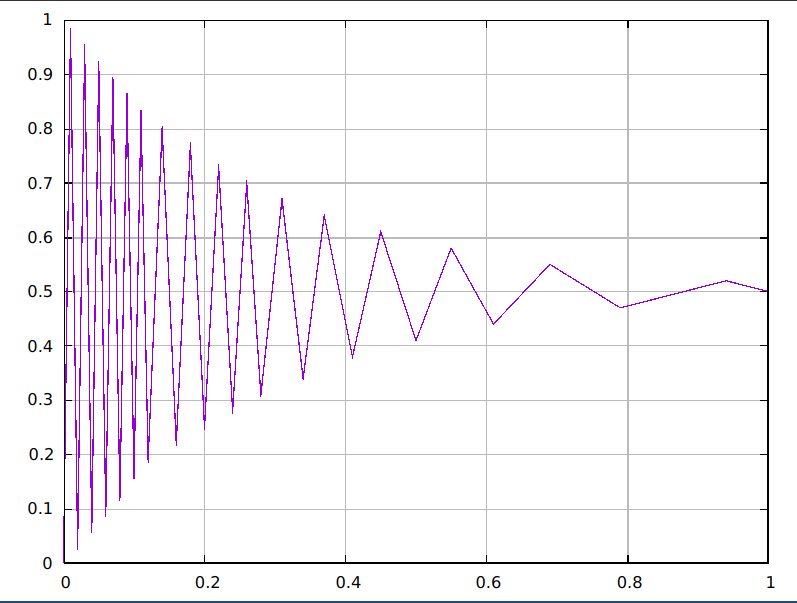

(plot-2d
 (digest-interp-form
   (:bindings ((min 0) (max 1))
    :dtime (n-exp x 0.01 0.3)
    :min (float (* ip-idx (/ 0.5 (1- ip-num))) 1.0)
    :max (- 1.0 (* ip-idx (/ 0.5 (1- ip-num)))))))
